Evaluating the ABB AI931B for Hazardous Area Applications
When selecting I/O modules for hazardous environments, engineers need reliable components that meet strict safety standards. The ABB AI931B analog input module, part number 3KDE175512L9310, offers a solution for Zone 2 installations. This buyer's guide helps you assess its key specifications and determine if it fits your application.
Core Specifications and Performance
The AI931B provides four passive input channels for 0/4 to 20 mA signals. It supports HART communication, enabling cyclic HART variable transmission over the fieldbus. The module operates within an ambient temperature range of -20 °C to 60 °C and withstands relative humidity up to 93 percent at 40 °C.
Electrical isolation exists between input and bus, as well as between input and power. The module includes short-circuit and break detection for each channel. Its compact dimensions—20 mm wide, 104 mm deep, and 104 mm high—make it suitable for space-constrained cabinets.
Hazardous Area Certification and Environmental Resilience
The AI931B carries ATEX certification for installation in Zone 2 hazardous locations. It also meets ISA-S71.04 G3 standards for corrosive atmospheres, with a G3 coating on all components. These certifications ensure reliable operation in demanding industrial environments.
Compliance with RoHS directive 2011/65/EU and WEEE directive 2012/19/EU supports environmental responsibility. The module falls under WEEE category for small equipment with no external dimension exceeding 50 cm.
Integration with S900 I/O Systems
The AI931B belongs to the ABB S900 I/O system, designed for installation in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous areas. The S900 system communicates via PROFIBUS DP, reducing marshalling and wiring costs by placing I/O directly in the field.
Integrated disconnection mechanisms allow module replacement during operation without interrupting primary voltage. The system supports redundancy for power and communication, as well as hot configuration in run and hot swap functionality.
Application Scenarios for the AI931B

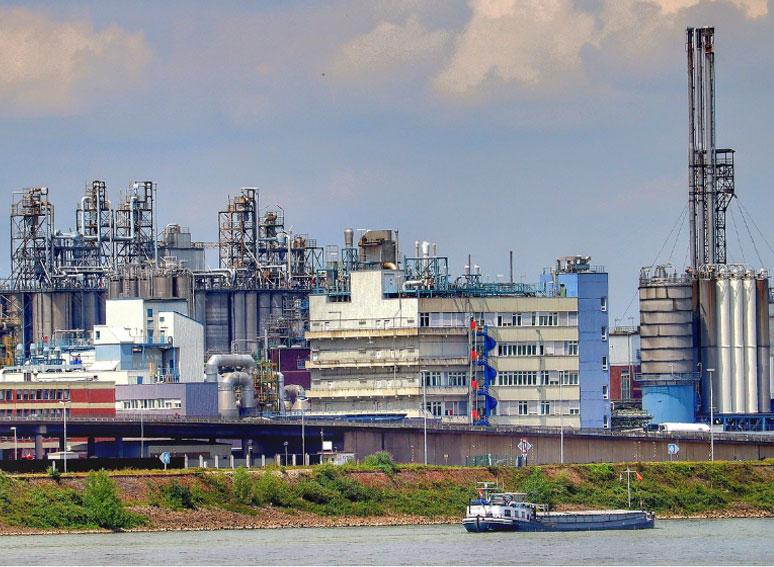

In chemical processing plants, the AI931B connects intrinsically safe field devices installed in Zone 2, Zone 1, or Zone 0. Its passive 4-20 mA inputs suit continuous monitoring of pressure, temperature, or flow transmitters. The HART capability enables remote configuration and diagnostics.
For oil and gas facilities, the module's ATEX Zone 2 certification and G3 coating provide resilience against corrosive gases. The extended diagnostic features simplify maintenance, while the common return for all inputs reduces wiring complexity.
Real-World Application Example
Consider a pharmaceutical batch reactor requiring accurate temperature monitoring from multiple RTD transmitters. The AI931B's four channels handle up to four 4-20 mA inputs, while HART communication allows remote calibration and fault detection. The hot swap capability ensures continuous operation during maintenance.
Frequently Asked Questions About the AI931B
What is the signal type supported by the AI931B?
The AI931B supports 0/4 to 20 mA passive inputs. It includes short-circuit and break detection for each of its four channels.
Can the AI931B be used in Zone 1 hazardous areas?
The AI931B carries ATEX certification for Zone 2 installation. For Zone 1 applications, please verify with the S900 system variant selection or contact CtrlTechDaily for guidance.
Does the AI931B support HART communication?
Yes, the module supports HART frames via the fieldbus and cyclic HART variables. This enables remote device configuration and diagnostic data access.
What are the dimensions and weight of the AI931B?
The module measures 20 mm wide, 104 mm deep, and 104 mm high. It weighs 0.13 kg (0.28 lbs).
Is the AI931B redundant?
The AI931B itself does not provide redundancy. However, the S900 I/O system supports redundancy for power and communication, allowing system-level fault tolerance.
