Optimizing 24 VDC Stability with the Honeywell FC-PDB-0824P Power Distribution Board
The Honeywell FC-PDB-0824P stabilizes and distributes field power within Safety Manager and hybrid DCS cabinets. In refinery and pharmaceutical applications, unstable DC distribution often causes intermittent I/O faults. Unlike generic DIN-rail modules, this board focuses on safety-system power segregation and fused protection. Proper implementation ensures the long-term stability of analog signals in high-noise environments. As a result, it significantly reduces nuisance shutdowns during critical plant startups.
Grounding Impedance Standards for Electrical Stability
Field engineering practices for Honeywell Safety Manager cabinets suggest strict grounding requirements. While standalone datasheets vary, experts typically recommend a protective earth (PE) resistance of ≤ 1 Ω. In high-noise **SIS** or **factory automation** environments, aiming for below 0.5 Ω is preferable. Grounding above 3 Ω often introduces random communication alarms and analog signal drift. Therefore, maintaining low impedance is essential for preventing grounding fault diagnostics in offshore or chemical plants.
24 VDC Distribution Architecture and Load Reliability

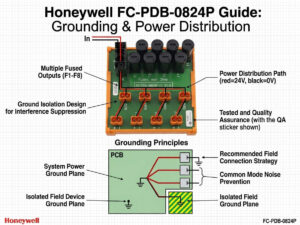

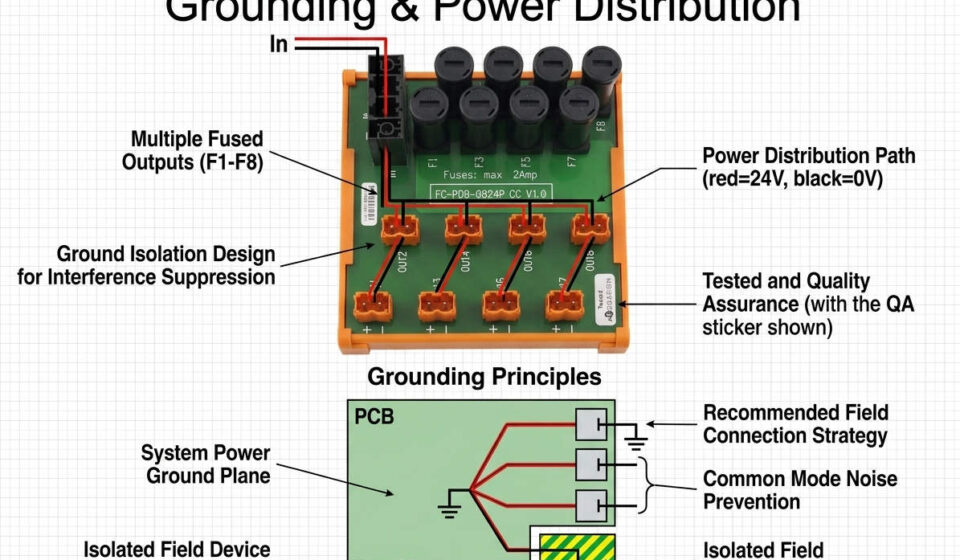

The FC-PDB-0824P typically provides eight fused channels, each rated for 2 A. This specialized architecture ensures that voltage drops do not compromise actuator response reliability. Many engineers incorrectly blame I/O cards for failures that actually stem from poor DC distribution design. In long cabinet rows, stable power distribution is more critical than nominal voltage accuracy. Consequently, the FC-PDB-0824P serves as a robust backbone for integrated control systems.
Managing EMC Tolerance in Harsh Industrial Areas
Operators commonly deploy this module in refinery MCC rooms and compressor skids. However, electromagnetic compatibility (EMC) poses a larger risk than temperature variations. Improper shield grounding near high-frequency drives can generate transient DC noise. A low-impedance earth network significantly improves module reliability under these conditions. In addition, isolating SIS instrument grounding from high-current motor grounding prevents interference. This strategy ensures the integrity of the industrial automation network.
Installation Strategies for Safety-Critical Environments
One frequent mistake during cabinet integration is bonding instrument ground directly with noisy power ground. We recommend a single-point grounding strategy inside the cabinet. In several refinery retrofits, "floating DC reference" alarms disappeared after reducing grounding impedance to 0.5 Ω. Furthermore, outdoor process units require Class II surge protection devices (SPD) to protect incoming feeders. Without external surge suppression, repeated transient exposure will eventually damage connected field transmitters and shorten fuse life.
Engineering Checklist for FC-PDB-0824P Deployment
- ✅ Ground Verification: Verify PE resistance is below 1 Ω before system energization.
- ⚙️ Noise Isolation: Keep SIS instrument grounding isolated from noisy power-current ground.
- 🔧 Vibration Resistance: Use ferrules on all stranded conductors and retorque terminals periodically.
- 📈 Surge Protection: Install external Class II SPDs for all field-facing DC feeders.
Expert Insight from Ubest Automation Limited
At Ubest Automation Limited, we emphasize that the FC-PDB-0824P is more than a passive hardware component. Its performance defines the "electrical floor" of your Safety Manager system. We often advise clients that loose terminals or poor grounding are the "hidden killers" of plant uptime. By investing in high-quality distribution hardware and rigorous grounding tests, you protect your broader investment in **DCS** and **SIS** technology.
To source original Honeywell components or receive technical support for your safety systems, please visit Ubest Automation Limited. Our experts are ready to assist with your cabinet integration needs.
Application Scenario: Gas Compression Skid
A gas compression station experienced intermittent controller resets during large motor startups. The team traced the issue to transient DC noise entering the PDB from a shared earth bar. By implementing a single-point grounding strategy and installing the FC-PDB-0824P with isolated instrument ground, the resets were eliminated. This case highlights how proper DC distribution improves the reliability of rotating equipment skids.
Safety System Frequently Asked Questions
While the board itself is passive, it provides the reference point for the entire 24 VDC system. High impedance allows noise to "ride" on the DC signal, causing errors in sensitive I/O cards and Safety Manager diagnostics.
Technically, it distributes 24 VDC power, but its form factor and terminal layout are optimized for Honeywell Safety Manager backplanes. Using it outside of its intended environment may complicate wiring and grounding topology.
We recommend inspecting fuse status and terminal torque during every major shutdown or every 12-18 months. In high-vibration environments, more frequent checks prevent intermittent power loss to field devices.
